Gizmo

Required Dependency: Entity Scale Manager

THE PLUGIN WILL FUNCTION WITHOUT IT, YOU JUST WONT GET THE FULL FUNCTIONALITY

Entity Scale Manger Download

✨ Features

• 3D Transform Gizmo | Select any entity and freely move or rotate it in real time
• Live Coordinate Display | Position and rotation values update live as you drag
• Axis Locking | Constrain movement or rotation to X, Y, Z, or free All axes
• Surface-Snap Translate | Shift+Left drag snaps entity flush to terrain or surfaces
• Roll Rotation | Shift+Right drag rotates with continuous roll; hold Shift for 4x speed
• Entity Duplication | Shift+R+Left click to clone an entity and immediately drag the copy
• Scale Control | Resize entities with << < [value] > >> buttons (requires EntityScaleManager)
• 3-Step Undo | Each grab saves position, rotation, and scale; undo up to 3 moves at once
• Nudge Buttons | Fine|tune position and rotation with + / | step buttons
• Direct Input Fields | Type an exact coordinate or angle value and press Enter

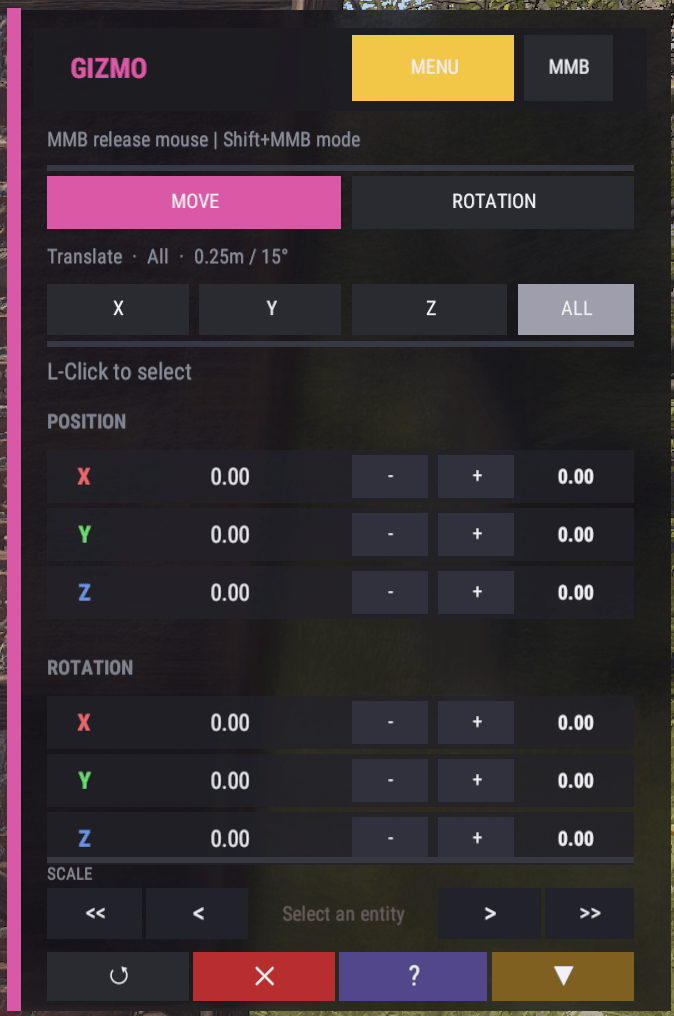

• Modern UI Panel | Compact dark|themed panel with accent color configurable in config
• MMB Cursor Toggle | Middle mouse switches between menu cursor and look/drag mode
• Delete Entity | Remove selected entity with a single button press
• Owner-Aware | Regular players can only act on entities they own; admins bypass this
• Optional EntityScaleManager Integration | Scale features gracefully disable if plugin is absent

? Permissions

gizmo.use | Allows use of the Gizmo tool on owned entities
gizmo.admin | Full access - can act on any entity regardless of ownership

? Commands

/gizmo | Gives you the Gizmo Tool item - equip it to open the panel

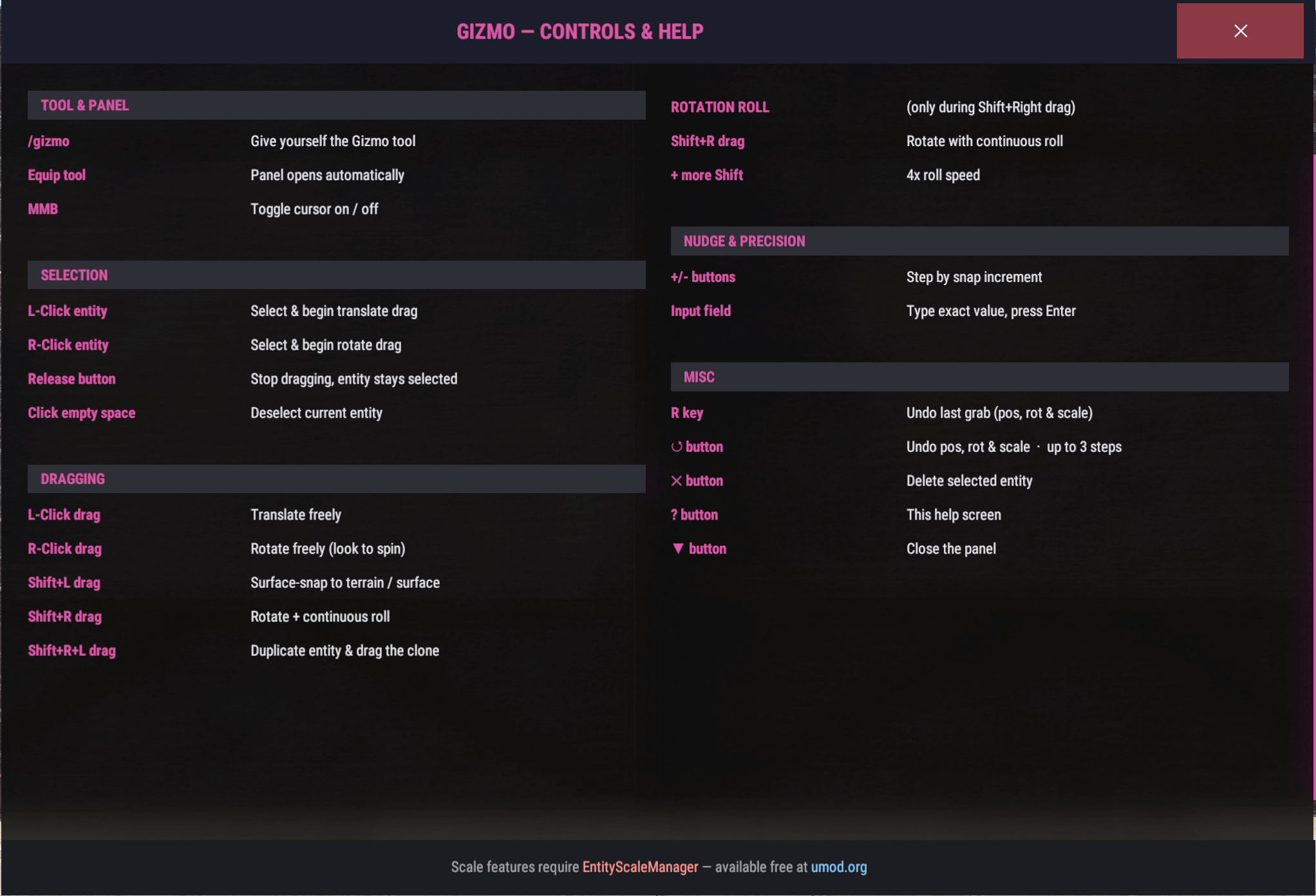

⌨️ Keyboard Shortcuts (While Holding Gizmo Tool)
MMB (Middle Mouse Button) | Toggle between menu cursor and look/drag mode
L-Click entity | Select entity and begin translate drag
R-Click entity | Select entity and begin rotate drag
Shift + L-Click drag | Surface-snap translate - snaps to terrain or nearest surface
Shift + R-Click drag | Rotate with continuous roll (hold Shift = 4x roll speed)
Shift + R(reload) + L click | Duplicate entity and drag the clone
R(reload) key | Undo last grab - restores position, rotation, and scale (up to 3 steps)

⚠️Caveats and Disclaimers
Scale requires EntityScaleManager - The gizmo.admin and gizmo.use scale buttons are disabled if EntityScaleManager is not loaded. It is available free at umod.org.
Admin permission is powerful - gizmo.admin bypasses ownership checks entirely. Only grant to trusted staff.
Entity deletion is irreversible - Deleted entities cannot be recovered. No confirmation dialog is shown.
Undo only tracks grabs - The undo history is saved when you click to grab an entity. Changes made via nudge buttons or input fields after releasing are not separately tracked.
Server-side only - Transform changes are applied server-side. Clients will see the entity snap to the new position on next network update.

⚙️ Configuration

{
  "ToolItemShortname": "coal",
  "ToolSkinID": 3253162295,
  "ToolDisplayName": "Gizmo Tool",
  "RaycastDistance": 50.0,
  "AutoOpenPanelWithTool": true,
  "ShowMessages": true,
  "DefaultSnapPosition": 0.25,
  "DefaultSnapRotation": 15.0,
  "NudgeDistance": 0.25,
  "NudgeRotation": 5.0,
  "MiddleMouseTogglesCursor": true,
  "ShiftMiddleMouseTogglesMode": true
}

? Localization

{
  "GivenTool": "Given {0}. Equip it - panel stays open, MMB toggles menu/look.",
  "Selected": "Selected {0}",
  "Duplicated": "Duplicated {0} - dragging clone.",
  "CouldNotDuplicate": "Could not duplicate that entity.",
  "Deleted": "Deleted {0}.",
  "NoEntitySelected": "No entity selected.",
  "NotOwned": "You don't own that entity.",
  "NothingToUndo": "Nothing to undo.",
  "Undone": "Undone.",
  "UndoneRemaining": "Undone - {0} undo{1} remaining.",
  "CursorOn": "Menu cursor ON - MMB to look/drag",
  "CursorOff": "Look/drag mode - MMB for menu",
  "PanelHidden": "Gizmo panel hidden - MMB to show.",
  "NoPermission": "You don't have permission.",
  "ScaleRequiresESM": "Scale requires the EntityScaleManager plugin to be loaded.",
  "ScaleSelectFirst": "Select an entity first to use scale.",
  "Hint": "Gizmo Tool - MMB menu/look, Shift+MMB move/rotate, L-Click select & drag.",
  "ItemCreateFailed": "Could not create '{0}' item."
}
